Certified Company
ISO 9001:2015
Leading Manufacturer
of Rubber Products
Price 6000-12000 INR/ Piece
(All Sizes Available / Tailored to Your Requirements)
Minimum Order Quantity – 20 Pieces
Supply Ability – 10 Pieces Per Week
Delivery Time – 7 Days
Main Domestic Market – All India
Main Export Market(s) – Asia, Australia, Central America, South America
Our rubber products are manufactured using a blend of natural and synthetic rubber, offering excellent tensile strength, flexibility, abrasion resistance, and durability.
Advantages & Testing Capabilities:
Kedar Rubber Products provides lightweight rubber linings that weigh 75% less than conventional brick liners, significantly lowering energy consumption, reducing gear wear, suppressing noise, and offering superior abrasion resistance for longer service life.
To ensure top quality, their advanced in-house testing facility evaluates key parameters such as tensile strength, hardness tear and adhesion bond strength, specific gravity, and Tc 90 curing rheography, with third-party testing options
available upon request.

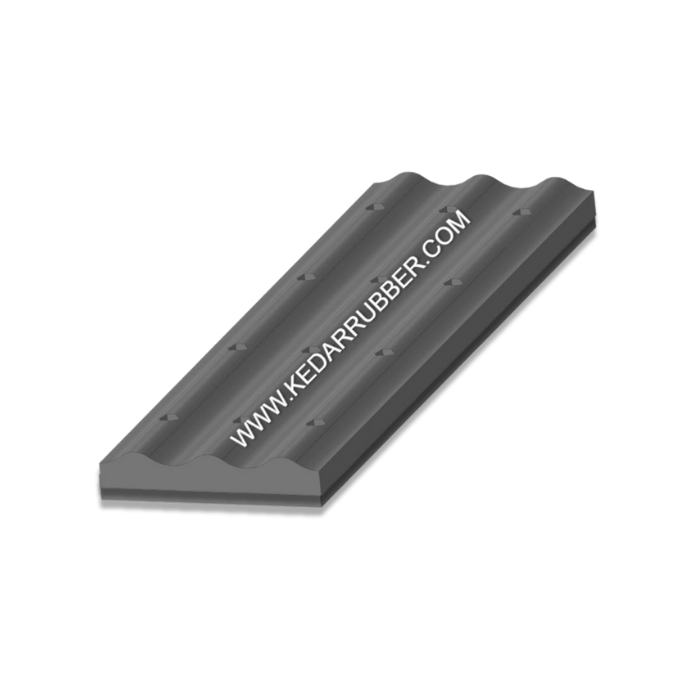

Wave Liner Specification
| Attribute | Details |
|---|---|
| Thickness | 40 mm to 80 mm |
| Style | Plain / Custom Molded |
| Size | Custom Sizes Available Upon Request |
| Color | Black |
| Weight | 20 kg to 80 kg per plate |
| Ash % | < 2% |
| Tensile Strength | 12-20 MPa (Kilopascals) |
| Width | 200 mm to 650 mm (Approx.) |
| Resistance Level | High Abrasion & Corrosion Resistance |
| Feature | Wear Resistant, Impact Resistant, Noise Reducing, Long Service Life |
| Natural Rubber | Yes, High Quality Grade |
| Rubber Type | Natural & Synthetic Rubber Compound |
| Density | 1.15 Tonne per cubic meter |
| Part Type | Mill Shell Plate Liner |
| Compression Ratio | Approx. 3:1 |
| Length | Up to 1.5 m |
| Hardness | 60 ± 5 Shore A |
| Surface Finish | Smooth / Matte as per requirement |
| Nitrogen Content | < 0.5% |
| Usage & Applications | Ball Mill Shell Protection, Mining, Cement, Industrial Wear Protection |
| Product Type | Wave Liner |
| Material | Natural Rubber & Synthetic Blends |
| Tolerance | ± 2 mm |
| Temperature Resistance | -20°C to +80°C |
| Diameter | Fits Ball Mill Sizes 1500 mm to 7000 mm |
| Volatile Matter | 1-2% |
| Thermal Conductivity | 0.15 W/mK |
| Components | Base Plate, Rubber Layer, Fixing Bolts |
| Water Absorption | < 1% (Minimal) |
| Flame Resistance Level | Standard / On Request |
| Attribute | Details |
|---|---|
| Maintenance | Low, Easy to Replace |
| OEM Compatibility | Customizable to Match OEM Ball Mill Brands |
| Mounting Method | Factory-fitted Holes for Bolts / Welding |
| Life Expectancy | 2–4 Years Under Normal Operating Conditions |
| Elongation at Break | 300% Minimum |
| Bonding Layer | Vulcanized or With Bonding Agent |
| Noise Dampening | Reduces Operational Noise by up to 10 dB |
| Chemical Resistance | Good Resistance to Acids and Alkalis |
| Edge Profile | Beveled / Chamfered as Per Design |
| Standards | IS, ASTM, or as specified |
Trade Information
| Trade Information | Details |
|---|---|
| Minimum Order Quantity | 20 Pieces |
| FOB Port | Mundra, Navashiva Mumbai |
| Payment Terms | Cash Advance (CA), Cheque, Delivery Point (DP) |
| Supply Ability | 10 Pieces Per Week |
| Delivery Time | 7 Days |
| Sample Available | No |
| Sample Policy | Free samples available with shipping and taxes paid by the buyer |
| Packaging Details | Standard |
| Main Export Market(s) | Middle East |
| Main Domestic Market | All India |
| Certifications | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 |
About Wave Liner
As an ISO certified company, we are able to cater wide demand of clients by providing superior quality Wave Liner. The offered liner is manufactured under the stern supervision of our adroit professionals by utilizing quality assured rubber and advance technology keeping in mind set industry norms. This liner finds wide applications in steel, ceramic and other industry. Furthermore, we provide this Wave Liner in diverse specifications to withstand the wide need of clients.
Features:
- Heat resistance
- Strong construction
- Easy installation
- Durability
Specification
- Application Industry
- Mining metal minrals ceramic
- Material
- Rubber
- Tensile Strength
- 20 Mpa
- Usage/Application
- Mill linning
- Size
- Customize
- Brand
- Kedar
Optimal Protection and Durability
Our Shell Plate Rubber Liners offer superior defense against abrasion and impact, extending the life of your ball mill shell. Manufactured with high-grade natural and synthetic rubber, they maintain a minimum tensile strength of 1220 MPa and elongation at break of at least 300%, ensuring resilience in rigorous environments. Their bonded construction and customizable fit further enhance operational safety and machine longevity.
The Wave Liner is a high-performance, solution-driven mill lining component designed to enhance grinding efficiency, improve material movement, and protect mill shells in demanding industries such as mining, cement, and mineral processing. Kedar Rubber’s Wave Liner is engineered with advanced wear-resistant rubber compounds and a unique wave-shaped design that improves lifting action, reduces slippage, and ensures uniform material distribution inside the mill. This optimized structure helps increase grinding efficiency, minimize liner wear, and significantly reduce maintenance downtime, resulting in better productivity and longer equipment life. If you are looking for a durable, cost-effective, and performance-oriented solution for your grinding operations, Kedar Rubber Products offers one of the most reliable Wave Liner solutions in India.
Contact Kedar Rubber today to get premium quality Wave Liners and customized solutions that maximize your mill efficiency, durability, and long-term performance!
Why Choose Us?
Dedicated Team
True Partners
Global Know-How
Focus On Innovation
FAQ
What is a Wave Liner?
A Wave Liner is a specially designed mill liner with a wave-shaped profile that improves material lifting and grinding efficiency inside grinding mills. It also protects the mill shell from wear and impact.
What are the benefits of using Wave Liners?
Wave Liners offer better material flow, improved grinding action, high wear resistance, reduced slippage, and longer service life, resulting in better mill performance.
Which industries use Wave Liners?
Wave Liners are widely used in mining, cement manufacturing, mineral processing, and other heavy industries where grinding mills operate under continuous load.
Wave Liner ka use kya hota hai?
Iska use grinding mill ke andar material ko lift aur grind karne ke liye hota hai, jisse efficiency improve hoti hai aur shell protection milta hai.
Rubber Wave Liner better kyun hota hai?
Rubber wave liner impact absorb karta hai, noise kam karta hai aur wear resistance zyada deta hai, jisse maintenance cost kam hoti hai aur machine ki life badhti hai.
Kedar Rubber Wave Liner ki life kitni hoti hai?
Kedar Rubber ke wave liners high-quality rubber compounds se bane hote hain jo tough industrial conditions me bhi long-lasting performance dete hain.
